Desmodromic Valves: Ducati’s Signature Technology

Desmodromic valves are a defining feature of Ducati motorcycles. Unlike conventional valve systems that use springs to close valves, the desmo system uses a mechanical cam-and-lever design for positive valve closure.

---

How Conventional Valves Work

In a typical engine, valves operate like this:

Phase	Mechanism
Opening	Camshaft pushes valve open via rocker arm
Closing	Spring pulls valve back to closed position

The Problem: Valve Float

At high RPM, valve springs can’t close the valve fast enough. This phenomenon is called valve float, and it:

• Reduces power output
• Causes poor combustion
• Can lead to piston-to-valve contact (catastrophic)
• Limits maximum RPM

---

How Desmodromic Valves Work

The word “desmodromic” comes from the Greek words:

• Desmos = bond, link
• Dromos = course, running

Instead of springs, desmo valves use two cam lobes and two rocker arms:

Component	Function
Opening Rocker	Pushes valve open (same as conventional)
Closing Rocker	Mechanically pulls valve closed
Opening Cam Lobe	Controls opening timing
Closing Cam Lobe	Controls closing timing

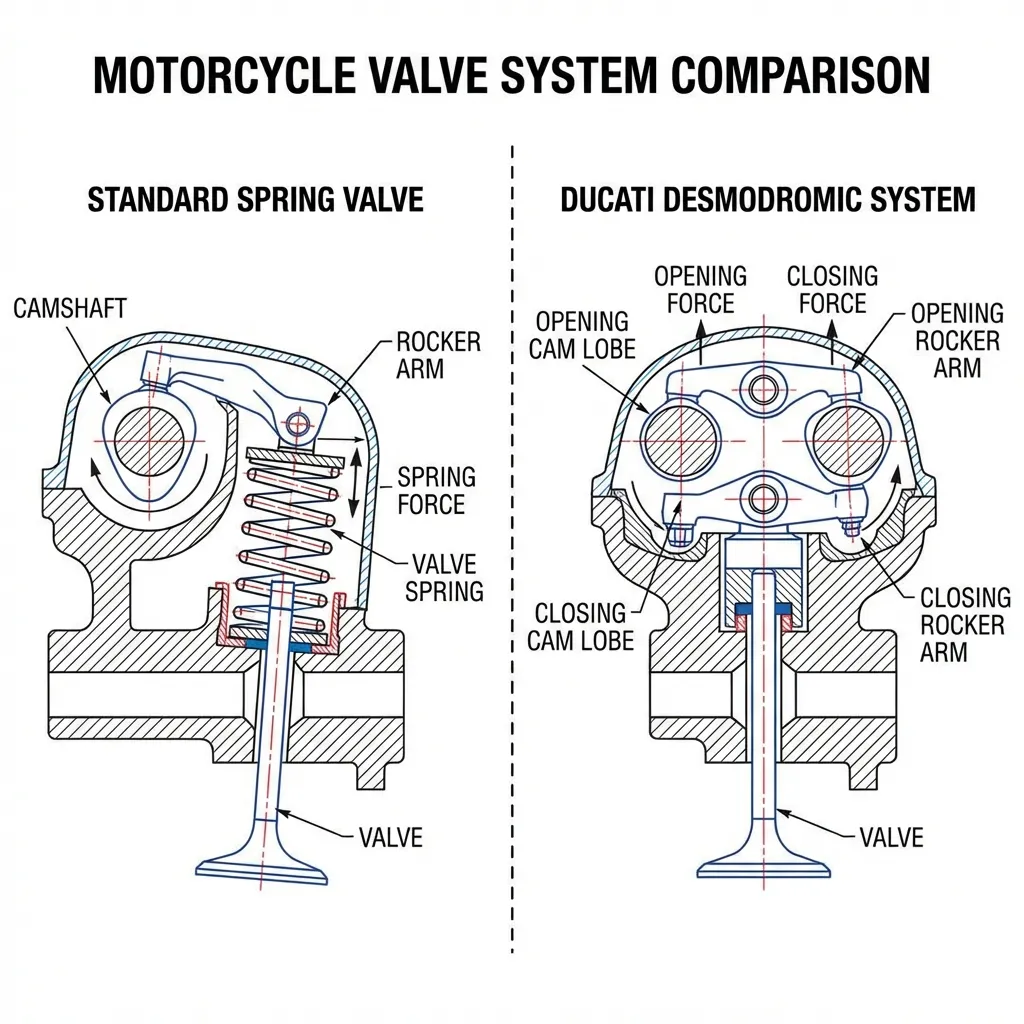

Visual Comparison

flowchart TB
    subgraph CONV["Conventional System"]
        direction TB
        C1[Camshaft] --> R1[Rocker Arm]
        R1 --> V1[Valve]
        V1 --> S1[Spring]
        S1 -.->|"Returns valve"| V1
    end

    subgraph DESMO["Desmodromic System"]
        direction TB
        C2[Opening Cam] --> R2[Opening Rocker]
        R2 --> V2[Valve]
        C3[Closing Cam] --> R3[Closing Rocker]
        R3 -->|"Pulls closed"| V2
    end

    style S1 fill:#ff4444,stroke:#000,color:#fff
    style R3 fill:#39ff14,stroke:#000,color:#000
    style C3 fill:#39ff14,stroke:#000,color:#000

Key Difference: The desmodromic system uses a second cam and rocker to mechanically close the valve, eliminating the spring entirely.

---

Advantages of Desmodromic Valves

Benefit	Explanation
Higher RPM ceiling	No valve float risk at extreme revs
More aggressive cam profiles	Can use steeper ramps without bounce
Precise valve timing	Mechanical control at all speeds
Reduced parasitic loss	No spring tension to overcome
Lighter valvetrain	No heavy springs needed

Real-World Performance

The Ducati Panigale V4 R revs to 16,500 RPM—a speed that would destroy conventional valve springs.

---

Disadvantages of Desmodromic Valves

Drawback	Impact
Complexity	More parts, more precise assembly
Maintenance	Valve clearance checks more critical
Cost	Service is specialized and expensive
Noise	Mechanical clatter at idle
Weight	Additional rocker arms add mass

Desmo Service Intervals

Ducati Model	Valve Check Interval
Monster 821	15,000 km (9,000 mi)
Panigale V4	24,000 km (15,000 mi)
SuperSport	24,000 km (15,000 mi)
Multistrada V4	30,000 km (18,000 mi)

Estimated service cost: $800-1,500 USD depending on model and market.

---

History of Desmodromic Valves

Ducati wasn’t the first to use desmo valves, but they’re the only manufacturer to use them consistently in production.

Timeline

Year	Milestone
1914	First desmo patent (Delage racing cars)
1954	Mercedes W196 uses desmo in Formula 1
1956	Ducati engineer Fabio Taglioni develops first desmo bike engine
1958	First Ducati desmo production bike (125cc racer)
1968	Ducati 450 Mark 3 - first desmo street bike
1970s	All Ducati L-twins adopt desmo
2018	Desmosedici Stradale V4 debuts in Panigale

---

Why Only Ducati Uses Desmo?

Other manufacturers have explored desmodromic valves, but abandoned them because:

1. Modern valve springs are excellent - Titanium and steel alloys handle 14,000+ RPM
2. Pneumatic valves exist - F1/MotoGP use air-sprung valves for extreme RPM
3. Complexity vs. benefit - For most bikes, springs are “good enough”
4. Brand identity - Desmo is now part of Ducati’s DNA

Ducati’s philosophy: Desmo isn’t just about performance—it’s about heritage and engineering purity.

---

Desmo Maintenance: What You Need to Know

Symptoms of Valve Issues

Symptom	Possible Cause
Hard starting when cold	Valves too tight
Loss of power	Valves too loose
Ticking noise at idle	Incorrect clearance
Backfiring on deceleration	Exhaust valve issue

DIY or Dealer?

Task	DIY?
Valve clearance check	Advanced DIY (shim-under-bucket)
Shim replacement	Dealer recommended
Belt replacement	Dealer required
Full desmo service	Dealer required

---

WikiMoto Verdict: Desmodromic valves are one of motorsport’s most elegant engineering solutions. They’re more expensive to maintain, but the precision and performance they enable is unmatched. If you buy a Ducati, embrace the desmo—it’s part of the experience.
